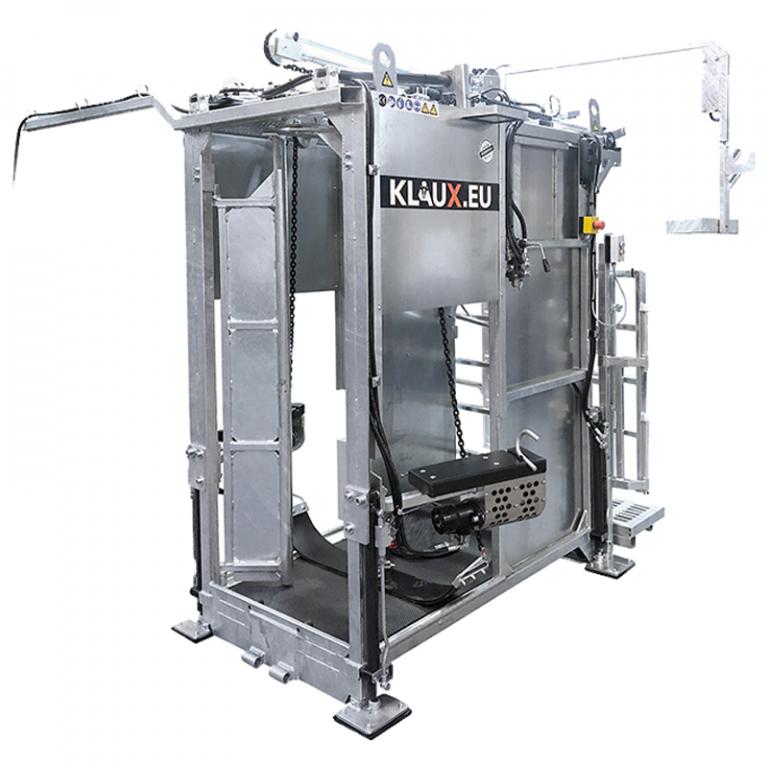

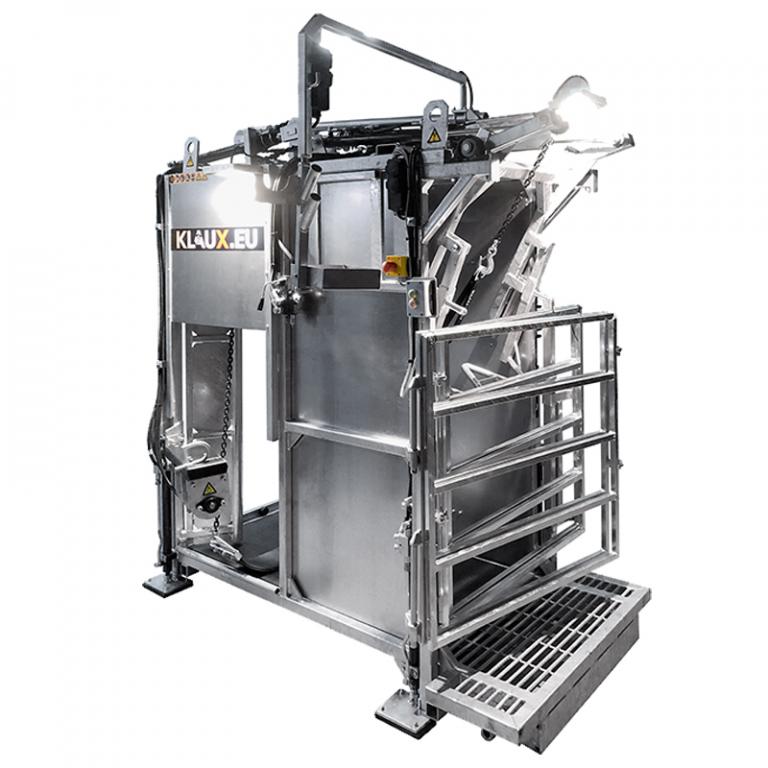

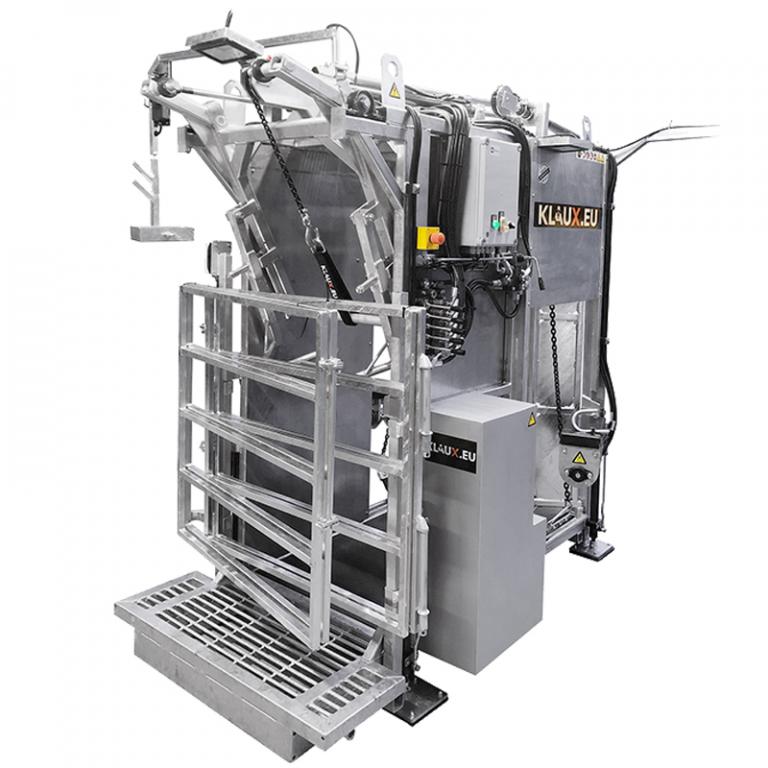

The Klaux Titanium is the fully hydraulic floor model for dairy farms and claw-specialised veterinary practices for efficient and ergonomic claw care and claw treatment. The 230-volt drive offers maximum positioning freedom in the barn and in the field.

Features:

• Fully galvanised steel
• Fully hydraulic
• Double mounting bracket for the rear legs
• LED lighting all round
• Can be positioned either with lifting eye or wheel set
• Can be raised by 25 cm
• Can be extended with customised options
• Flat, barrier-free access for the cow
• Centrally positioned emergency stop switches on both sides for the entire system including all electrical devices. The lighting remains on!
• Hydraulic front and rear leg winch
• Hydraulic belly belt lifting system
• Hydraulic tailgate with safety bar
• Rubberised floor
• 2 folding drift fences: 1 m wide x 1.30 m high
• Numerous sockets
• Tool holder that can be rotated over the entire stand
• Rear manure grid
• Optionally with illuminated and heatable material box

The hydraulic tailgate with rear leg strap is opened and closed manually.

The Titanium model has 3 powerful LED headlights that ensure optimum visibility in all lighting conditions.

The power cable guide is inserted into the stand, where the cable is hooked in. This keeps the cable out of the work area at all times without causing interference.

The swivelling tool holder can be rotated across the entire stand. It provides space for angle grinders, work materials and tools. All materials are always within easy reach.

The hydraulic front leg winches automatically bring the cow's legs into the correct position on the front leg rest so that the hooves are immediately ready for processing.

The Titanium has hydraulically adjustable legs and can therefore be adapted to the ergonomic working height of the hoof trimmer.

The non-porous floor with anti-slip coating prevents the penetration of bacteria and is easy to clean and disinfect. The anti-slip coating gives the cow a secure hold.

Two floating grids are hooked into the stall and can be moved freely. The hoof trimmer's freedom of movement is not restricted.

Two central emergency stop switches provide optimum protection. The entire electrical system, including all devices, is switched off at the touch of a button. The lights remain switched on for safety.

The optional wheel set can simply be inserted into the holder provided. The stand is then simply pushed to the workstation.

Product dimensions:

• Internal dimensions: 73 cm wide x 168 cm high
• External dimensions: 225 cm long x 145 cm wide x 218 cm high
• Weight: 900 kg

Technical features:

• Voltage: 230 V
• Hose hydraulic system
• Lifting height: 25 cm

Certified according to NEN 3140 legislation and built in accordance with EU machinery directives.

Warranty is 1 year from date of delivery.

Price per piece. Availability on request. Please contact us if you have any questions. We are at your disposal.

Klaux Trimming Chute Comparison Sheet
